sink valve install on Black Friday

tools and supplies needed

OK, I couldn't find any decent 'how to' for installing shutoff valve to copper pipe online, so I'm making my own here for others.  Most online how-to's do not have much detail or photos, or have more advertising than content!

Here are the tools needed:
- hand held torch. I used the 'Benz-o-matic' trigger start torch with MAPP gas for the 3000+ degree flame temp
- lead-free solder
- lead-free solder flux
- LED flashlight
- 1/2" 'sweat connection' to 3/8" compression valves (Brasscraft)
- Rigid pipe cutter
- Brasscraft mini pipe cutter (not shown in photo)
- Brasscraft pipe reamer
- 150 grit sandpaper
- two 5 gallon buckets (or smaller if you're feeling lucky)

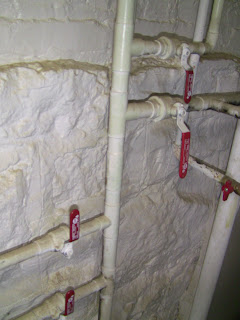

water main with valves turned off

hot water heater cold feed shut off

Before cutting any pipe, you have to shutoff the water supply. Do NOT forget to turnoff the shutoff to the hot water heater.  When I cut pipe last time for the toilet, i had a small flood when my hot water heater started draining out, full force.  Luckily I was able to shut it off in time before all 70 gallons came out.

Also, all faucets above the level of the pipe must be opened to drain any water in the lines.  You could leave them closed, and hope the vacuum keeps the water in the pipe, but if your in the middle of work and suddenly someone tries to turn on the water, you're screwed!

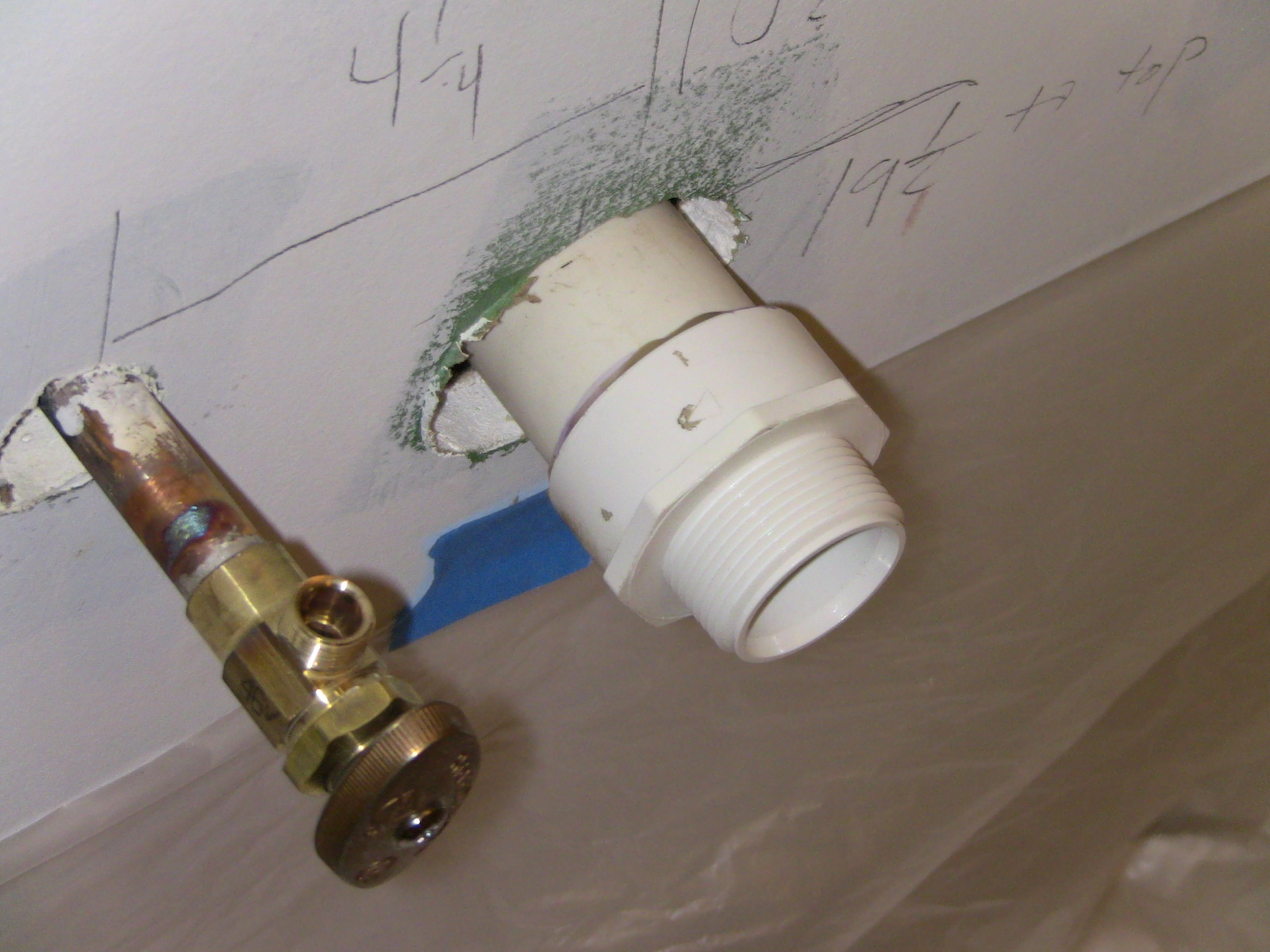

rough plumbing.  1/2" copper hot and cold, 1 1/2" 'waste' PVC pipe

The plumber installed all the rough plumbing.  The 1/2" copper is the cold on the right, hot on the left.  The 1 1/2" PVC in the middle is *not* glued to the drain, it was only there temporarily as a guide for the drywaller, and to prevent anything from damaging the pipe opening.  We added the painters tape to prevent the sewer gases from escaping.  Normally, the gases are held in by water in the sink's p-trap.

Rigid pipe cutter, with tape mark 2" from wall

Before cutting the pipe, i put a piece of tape on the pipe 2" from the wall.  A marker would be better, but I couldn't find one.  You could cut the pipe much closer to the wall if your connection will be visible (pedestal sink).  The further from the wall, the less chance you have off setting the drywall on fire with the torch.

Brasscraft mini pipe cutter

When the water feed was too close to the drain pipe, I used the mini cutter to cut the pipe.

After a few turns, and you think the pipe is being close to cut open, put the bucket under the connection.  Make those last few turns quickly, and the pipe will come off with quite a bit of water, and the stub will fall into the bucket.

drain water

Cut both hot and cold pipes, and give the water some time to drain.  It will come in small waves from different parts of the house.  After you think most of the water is drained, walk around the entire house looking for faucets you might have forgotten to open the first time around.  You could even flush the toilet to turn on the valve inside, but I found that's not necessary.  Don't allow anyone to flush the toilet during this work!

allowing pipes to drain completely

The soft copper only needs a couple of turns of the piper reamer on both outside and inside of the pipe.

Brasscraft pipe reamer

You can check the reamer did the job by slipping the valve onto the pipe.  If you feel anything catching, run your fingers along the pipe to check for any further 'deburring' (smoothing) needed.

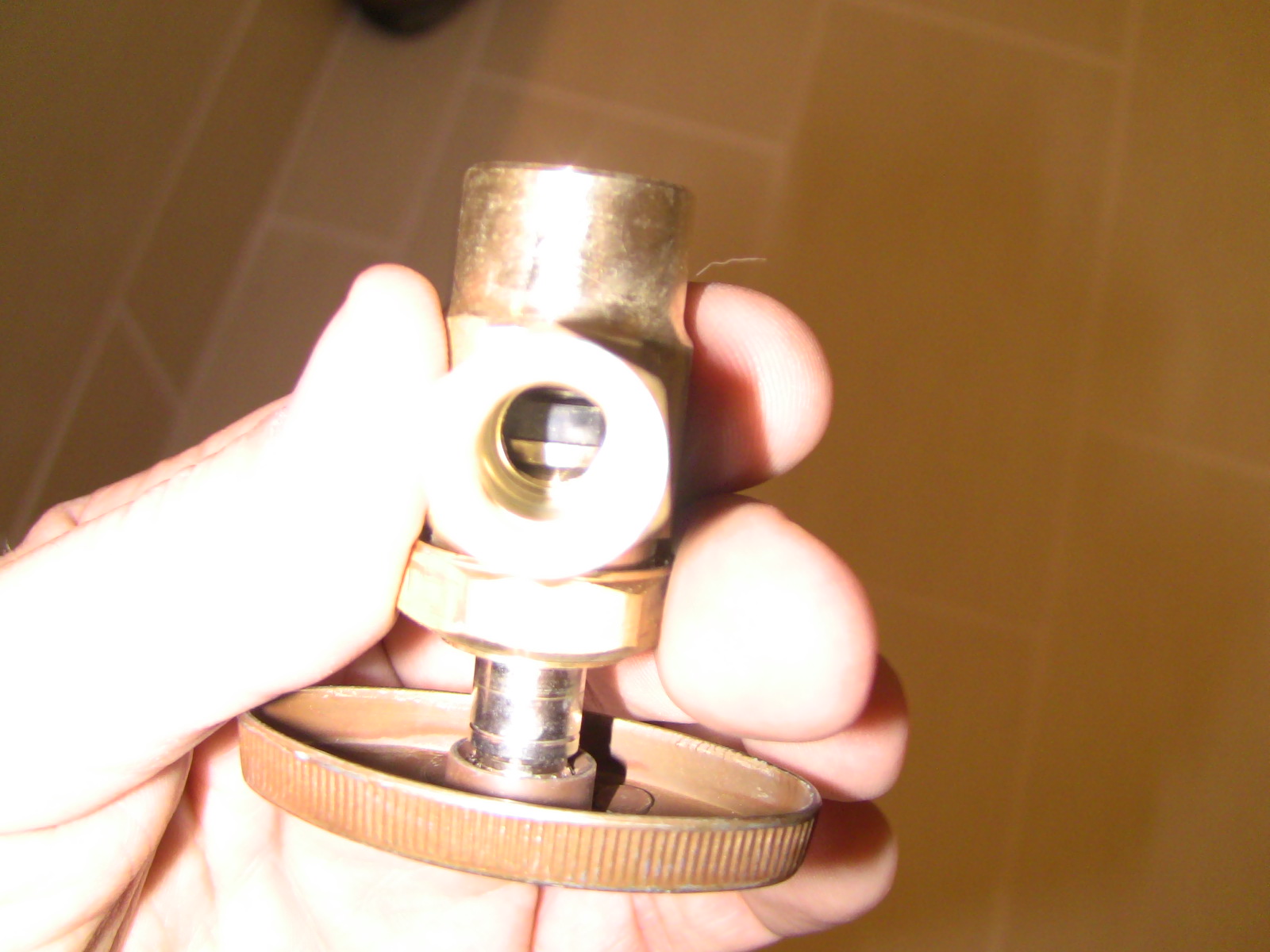

When removing the valves from the boxes, they are fully closed.  Since the heat from the torch could melt the rubber o-ring, i open the valve so the o-ring is not touching the part of the valve that is heated up.  Just a precaution, maybe not needed.

o-ring inside valve

After using the sandpaper to remove the paint, drywall mud, and oxidation, I applied the solder flux to the portion of the pipe that will be covered by the valve.   Don't remove too much copper with the sandpaper!

applying solder flux

The solder will follow the flux, so remove the excess flux from the pipe.  You want the solder to flow into the valve/pipe connection.  Remove the excess flux with the valve on the pipe.Also, i would angle the valves about 5 degrees toward the center, since the faucet connects are between the pipes.

removing excess flux from pipe

You can find many youtubular videos that show someone soldering copper pipe.  I only heated the pipe and valve just enough to melt the solder.  I would apply the solder on all sides, including the bottom while moving the torch to the opposite side.  You want the solder to melt against the hot metal, not the torch flame.  You'll see the solder getting sucked into the valve connection due to the flux.

torch to left, *parallel* to wall

Photo below shows all 4 valves installed

All 4 valves

Here's a better look at the installed valves.

After the valves are in, its time to turn the water back on to test the connection.
Follow this order:
1) wait for the valves to cool off
2) close all the sink valves fully
3) turn on the cold and hot water supplies.  If you're not confident about your solder job, make sure someone else is watching the valves when you turn on the main water supply.  If there are any gross leaks, they can let you know immediately so you can turn off the main supply immediately
4) bleed the air out of the end of the pipe.  Open the sink valve just enough so water comes out and all the air is out of the pipe.  You'll hear a quick swoosh sound, and then close the valve again.  This all has to be done in a few seconds!
5) check for leaks

If there are no apparent leaks, you could be done!

'paper towel test'

Most vanity drains are 1 1/4", but PVC drain pipe is 1 1/2", so you need p-trap adapter.  I used PVC glue to attach to drain.

1 1/2" to 1 1/4" p-trap connector
